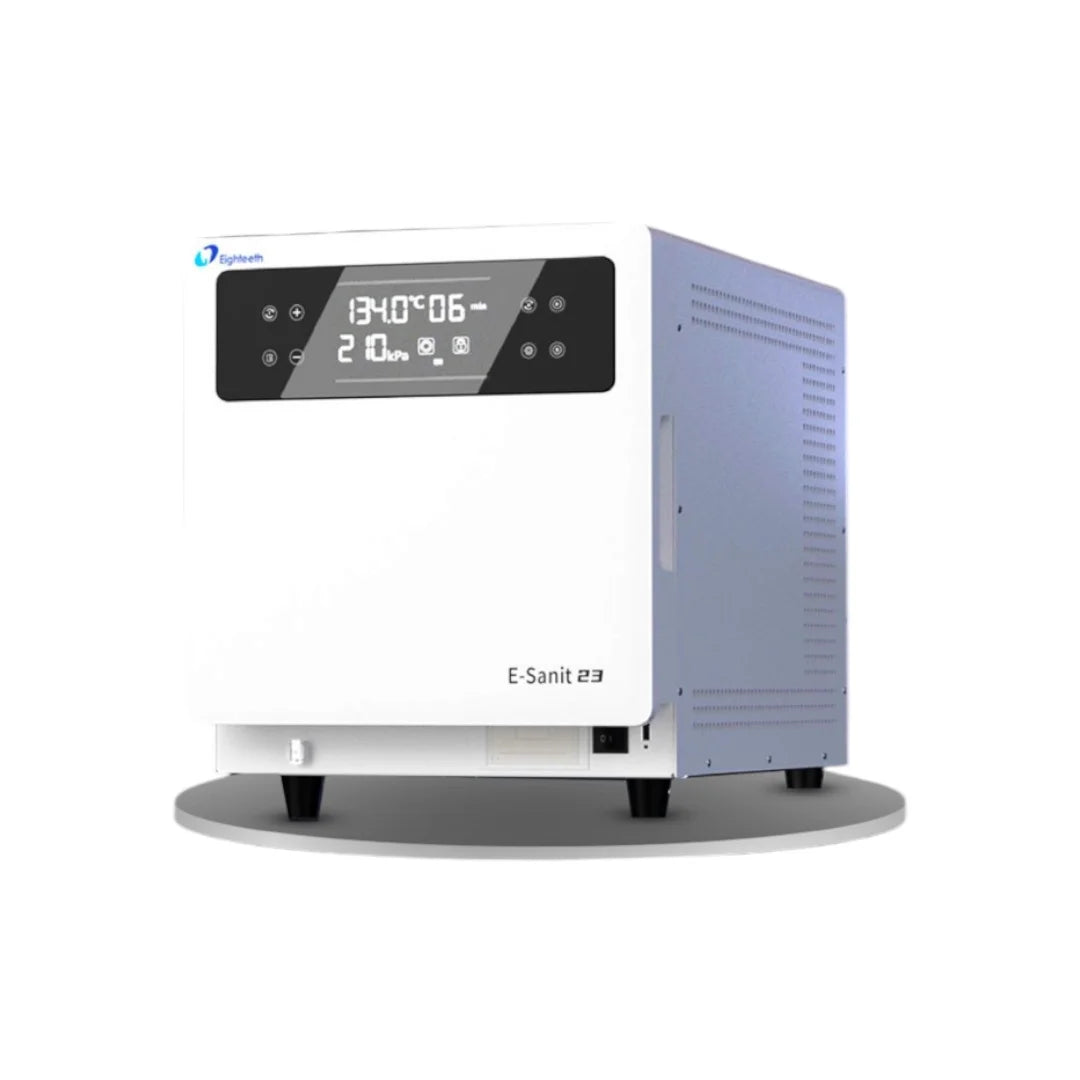

E-Sanit Autoclave Class B 23 Liters

This small steam sterilizer is designed for application in a medical context, for example general practitioners and dental practices. According to EN 13060, this steam sterilizer is considered a steam sterilizer with type B cycles. As a universal steam sterilizer, it is suited to highly demanding sterilization tasks. It can be used for a range of tasks such as the sterilization of large quantities of instruments with narrow lumen and transmission instruments – both wrapped or unwrapped – and of textiles.
Operating conditions:
– Ambient temperature:5°C~40°C.
– Relative humidity: – Atmospheric pressure: 70kPa~106kPa.
Transport and storage conditions:
– Ambient temperature: -20°C~55°C. – Relative humidity: 20% ~ 85%.
– Atmospheric pressure: 70kPa~106kPa.
– User-friendly LCD touch panel showing real-time data accurate to 1 kPa.
– Place the end of the drain pipe into the wastewater collection container, which is not higher than the wastewater outlet of the sterilizer.
– The wastewater collection container shall not be higher than the wastewater outlet of the sterilizer.
– This product employs a mechanical vacuum to exclude indoor cold air.
– The sterilization process is based on moist heat, utilizing saturated hot and wet steam as the sterilization factor.
– The sterilization environment is characterized by high temperature, high pressure, and high humidity.
– The sterilization of items that can be penetrated by steam is achieved through the application of a specific combination of pressure and time.
Pattern M1: – Type of sterilization cycle: B.
– Cycle completion time/min: About 50.
– Apply load type or role: Suitable for sterilization of heat-resistant items with packaging.
– Such as the standard load simulation for metal screws with paper-plastic bags, cavity instruments, and fabric load with a cloth. Pattern M2:
– Type of sterilization cycle: N.
– Cycle completion time/min: About 35.
– Apply load type or role: For sterilization of unpackaged, heat-resistant bare metal items.
– For example, the standard simulated load is solid metal screws. Pattern M3:
– Type of sterilization cycle: N.
– Cycle completion time/min: About 45.
– Apply load type or role: Rubber, unwrapped solid items that are not resistant to high temperatures of 134° C. Pattern M4:
– Type of sterilization cycle: B.
– Cycle completion time/min: About 60.
– Apply load type or role: Rubber that is not resistant to 134°C high temperature, unpacked or packed solid, cavity items, fabrics.
Pattern M5: – Type of sterilization cycle: B.
– Cycle completion time/min: About 60. – Apply load type or role: For packages containing bacteria that are harder to kill, instruments.
– High temperature resistant unpacked or packed solid, cavity items, fabrics.
– 8 programs meet diverse user needs while ensuring the utmost effectiveness.
– In the normal sterilization cycle, the sterilizer shall not have abnormal noise, and its noise is not more than 70dB (A weight).
– Total heat in Joules transferred to the surrounding air by the sterilizer during one hour of continuous operation at an ambient temperature of (23±3)°C:37.8KJ/h. Specifications:
– Model: E-Sanit 23. \
– Instrument class Maximum load(Kg):5.5.
– Fabric class maximum load (Kg): 1.8.
– Maximum load per package (Kg): 1.8.
– Steam Sterilizer Main Body with load weight (Kg): 60.4.
– Sterilization room volume: 23 Liter.
– Sterilization room size: $254 x 455 mm.
– Product size: 620 x 421 x 500 mm.
– Inclusive package: 66 Kg.
– Power rating: AC220V/50Hz.
– Maximum water consumption: 700 ml.
– Warranty: 2 Years.
